Capture audio - Wio Terminal

In this part of the lesson, you will write code to capture audio on your Wio Terminal. Audio capture will be controlled by one of the buttons on the top of the Wio Terminal.

Program the device to capture audio

You can capture audio from the microphone using C++ code. The Wio Terminal only has 192KB of RAM, not enough to capture more than a couple of seconds of audio. It also has 4MB of flash memory, so this can be used instead, saving captured audio to the flash memory.

The built-in microphone captures an analog signal, which gets converted to a digital signal that the Wio Terminal can use. When capturing audio, the data needs to be captured at the correct time - for example to capture audio at 16KHz, the audio needs to be captured exactly 16,000 times per second, with equal intervals between each sample. Rather than use your code to do this, you can use the direct memory access controller (DMAC). This is circuitry that can capture a signal from somewhere and write to memory, without interrupting your code running on the processor.

✅ Read more on DMA on the direct memory access page on Wikipedia.

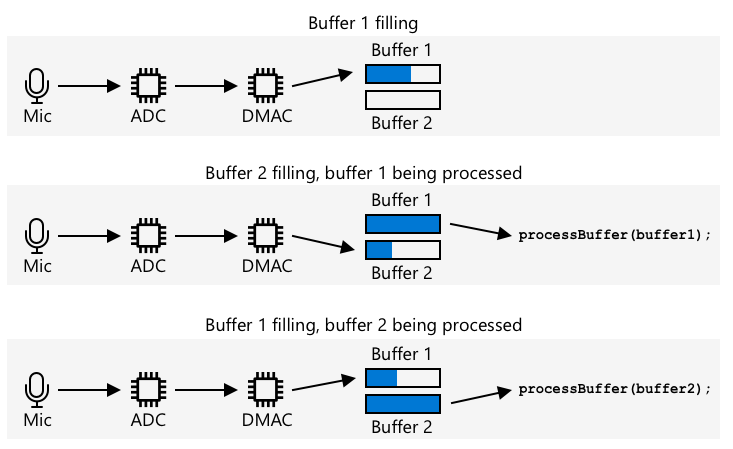

Audio from the mic goes to an ADC then to the DMAC. This writes to one buffer. When this buffer is full, it is processed and the DMAC writes to a second buffer

The DMAC can capture audio from the ADC at fixed intervals, such as at 16,000 times a second for 16KHz audio. It can write this captured data to a pre-allocated memory buffer, and when this is full, make it available to your code to process. Using this memory can delay capturing audio, but you can set up multiple buffers. The DMAC writes to buffer 1, then when it's full, notifies your code to proces buffer 1, whilst the DMAC writes to buffer 2. When buffer 2 is full, it notifies your code, and goes back to writing to buffer 1. That way as long as you process each buffer in less time that it takes to fill one, you will not lose any data.

Once each buffer has been captured, it can be written to the flash memory. Flash memory needs to be written to using defined addresses, specifying where to write and how large to write, similar to updating an array of bytes in memory. Flash memory has granularity, meaning erase and writing operations rely not only on being of a fixed size, but aligning to that size. For example, if the granularity is 4096 bytes and you request an erase at address 4200, it could erase all the data from address 4096 to 8192. This means when you write the audio data to flash memory, it has to be in chunks of the correct size.

Task - configure flash memory

Create a brand new Wio Terminal project using PlatformIO. Call this project smart-timer. Add code in the setup function to configure the serial port.

Add the following library dependencies to the platformio.ini file to provide access to the flash memory:

lib_deps =
    seeed-studio/Seeed Arduino FS @ 2.1.1
    seeed-studio/Seeed Arduino SFUD @ 2.0.2

Open the main.cpp file and add the following include directive for the flash memory library to the top of the file:
```
#include <sfud.h>
#include <SPI.h>
```
🎓 SFUD stands for Serial Flash Universal Driver, and is a library designed to work with all flash memory chips
In the setup function, add the following code to set up the flash storage library:
```
while (!(sfud_init() == SFUD_SUCCESS))
    ;

sfud_qspi_fast_read_enable(sfud_get_device(SFUD_W25Q32_DEVICE_INDEX), 2);
```
This loops until the SFUD library is initialized, then turns on fast reads. The built-in flash memory can be accessed using a Queued Serial Peripheral Interface (QSPI), a type of SPI controller that allows continuous access via a queue with minimal processor usage. This makes it faster to read and write to flash memory.
Create a new file in the src folder called flash_writer.h.
Add the following to the top of this file:
```
#pragma once

#include <Arduino.h>
#include <sfud.h>
```
This includes some needed header files, including the header file for the SFUD library to interact with flash memory
Define a class in this new header file called FlashWriter:
```
class FlashWriter
{
public:

private:
};
```
In the private section, add the following code:
```
byte *_sfudBuffer;
size_t _sfudBufferSize;
size_t _sfudBufferPos;
size_t _sfudBufferWritePos;

const sfud_flash *_flash;
```
This defines some fields for the buffer to use to store data before writing it to the flash memory. There is a byte array, _sfudBuffer, to write data to, and when this is full, the data is written to flash memory. The _sfudBufferPos field stores the current location to write to in this buffer, and _sfudBufferWritePos stores the location in flash memory to write to. _flash is a pointer the flash memory to write to - some microcontrollers have multiple flash memory chips.
Add the following method to the public section to initialize this class:
```
void init()
{
    _flash = sfud_get_device_table() + 0;
    _sfudBufferSize = _flash->chip.erase_gran;
    _sfudBuffer = new byte[_sfudBufferSize];
    _sfudBufferPos = 0;
    _sfudBufferWritePos = 0;
}
```
This configures the flash memory on the Wio Terminal to write to, and sets up the buffers based off the grain size of the flash memory. This is in an init method, rather than a constructor as this needs to be called after the flash memory has been set up in the setup function.

Add the following code to the public section:

void writeSfudBuffer(byte b)
{
    _sfudBuffer[_sfudBufferPos++] = b;
    if (_sfudBufferPos == _sfudBufferSize)
    {
        sfud_erase_write(_flash, _sfudBufferWritePos, _sfudBufferSize, _sfudBuffer);
        _sfudBufferWritePos += _sfudBufferSize;
        _sfudBufferPos = 0;
    }
}

void writeSfudBuffer(byte *b, size_t len)
{
    for (size_t i = 0; i < len; ++i)
    {
        writeSfudBuffer(b[i]);
    }
}

void flushSfudBuffer()
{
    if (_sfudBufferPos > 0)
    {
        sfud_erase_write(_flash, _sfudBufferWritePos, _sfudBufferSize, _sfudBuffer);
        _sfudBufferWritePos += _sfudBufferSize;
        _sfudBufferPos = 0;
    }
}

This code defines methods to write bytes to the flash storage system. It works by writing to an in-memory buffer that is the right size for the flash memory, and when this is full, this is written to the flash memory, erasing any existing data at that location. There is also a flushSfudBuffer to write an incomplete buffer, as the data being captured won't be exact multiples of the grain size, so the end part of the data needs to be written.

💁 The end part of the data will write additional unwanted data, but this is ok as only the data needed will be read.

Task - set up audio capture

Create a new file in the src folder called config.h.

Add the following to the top of this file:

#pragma once

#define RATE 16000
#define SAMPLE_LENGTH_SECONDS 4
#define SAMPLES RATE * SAMPLE_LENGTH_SECONDS
#define BUFFER_SIZE (SAMPLES * 2) + 44
#define ADC_BUF_LEN 1600

This code sets up some constants for the audio capture.

Constant	Value	Description
RATE	16000	The sample rate for the audio. 16,000 is 16KHz
SAMPLE_LENGTH_SECONDS	4	The length of audio to capture. This is set to 4 seconds. To record longer audio, increase this.
SAMPLES	64000	The total number of audio samples that will be captured. Set to the sample rate * the number of seconds
BUFFER_SIZE	128044	The size of the audio buffer to capture. Audio will be captured as a WAV file, which is 44 bytes of header, then 128,000 bytes of audio date (each sample is 2 bytes)
ADC_BUF_LEN	1600	The size of the buffers to use to capture audio from the DMAC

💁 If you find 4 seconds is too short to request a timer, you can increase the SAMPLE_LENGTH_SECONDS value, and all the other values will recalculate.

Create a new file in the src folder called mic.h.
Add the following to the top of this file:
```
#pragma once

#include <Arduino.h>

#include "config.h"
#include "flash_writer.h"
```
This includes some needed header files, including the config.h and FlashWriter header files.
Add the following to define a Mic class that can capture from the microphone:
```
class Mic
{
public:
    Mic()
    {
        _isRecording = false;
        _isRecordingReady = false;
    }

    void startRecording()
    {
        _isRecording = true;
        _isRecordingReady = false;
    }

    bool isRecording()
    {
        return _isRecording;
    }

    bool isRecordingReady()
    {
        return _isRecordingReady;
    }

private:
    volatile bool _isRecording;
    volatile bool _isRecordingReady;
    FlashWriter _writer;
};

Mic mic;
```
This class currently only has a couple of fields to track if recording has started, and if a recording is ready to be used. When the DMAC is set up, it continuously writes to memory buffers, so the _isRecording flag determines if these should be processed or ignored. The _isRecordingReady flag will be set when the required 4 seconds of audio has been captured. The _writer field is used to save the audio data to flash memory.

A global variable is then declared for an instance of the Mic class.

Add the following code to the private section of the Mic class:

typedef struct
{
    uint16_t btctrl;
    uint16_t btcnt;
    uint32_t srcaddr;
    uint32_t dstaddr;
    uint32_t descaddr;
} dmacdescriptor;

// Globals - DMA and ADC
volatile dmacdescriptor _wrb[DMAC_CH_NUM] __attribute__((aligned(16)));
dmacdescriptor _descriptor_section[DMAC_CH_NUM] __attribute__((aligned(16)));
dmacdescriptor _descriptor __attribute__((aligned(16)));

void configureDmaAdc()
{
    // Configure DMA to sample from ADC at a regular interval (triggered by timer/counter)
    DMAC->BASEADDR.reg = (uint32_t)_descriptor_section;                    // Specify the location of the descriptors
    DMAC->WRBADDR.reg = (uint32_t)_wrb;                                    // Specify the location of the write back descriptors
    DMAC->CTRL.reg = DMAC_CTRL_DMAENABLE | DMAC_CTRL_LVLEN(0xf);           // Enable the DMAC peripheral
    DMAC->Channel[1].CHCTRLA.reg = DMAC_CHCTRLA_TRIGSRC(TC5_DMAC_ID_OVF) | // Set DMAC to trigger on TC5 timer overflow
                                    DMAC_CHCTRLA_TRIGACT_BURST;             // DMAC burst transfer

    _descriptor.descaddr = (uint32_t)&_descriptor_section[1];                    // Set up a circular descriptor
    _descriptor.srcaddr = (uint32_t)&ADC1->RESULT.reg;                           // Take the result from the ADC0 RESULT register
    _descriptor.dstaddr = (uint32_t)_adc_buf_0 + sizeof(uint16_t) * ADC_BUF_LEN; // Place it in the adc_buf_0 array
    _descriptor.btcnt = ADC_BUF_LEN;                                             // Beat count
    _descriptor.btctrl = DMAC_BTCTRL_BEATSIZE_HWORD |                            // Beat size is HWORD (16-bits)
                            DMAC_BTCTRL_DSTINC |                                    // Increment the destination address
                            DMAC_BTCTRL_VALID |                                     // Descriptor is valid
                            DMAC_BTCTRL_BLOCKACT_SUSPEND;                           // Suspend DMAC channel 0 after block transfer
    memcpy(&_descriptor_section[0], &_descriptor, sizeof(_descriptor));          // Copy the descriptor to the descriptor section

    _descriptor.descaddr = (uint32_t)&_descriptor_section[0];                    // Set up a circular descriptor
    _descriptor.srcaddr = (uint32_t)&ADC1->RESULT.reg;                           // Take the result from the ADC0 RESULT register
    _descriptor.dstaddr = (uint32_t)_adc_buf_1 + sizeof(uint16_t) * ADC_BUF_LEN; // Place it in the adc_buf_1 array
    _descriptor.btcnt = ADC_BUF_LEN;                                             // Beat count
    _descriptor.btctrl = DMAC_BTCTRL_BEATSIZE_HWORD |                            // Beat size is HWORD (16-bits)
                            DMAC_BTCTRL_DSTINC |                                    // Increment the destination address
                            DMAC_BTCTRL_VALID |                                     // Descriptor is valid
                            DMAC_BTCTRL_BLOCKACT_SUSPEND;                           // Suspend DMAC channel 0 after block transfer
    memcpy(&_descriptor_section[1], &_descriptor, sizeof(_descriptor));          // Copy the descriptor to the descriptor section

    // Configure NVIC
    NVIC_SetPriority(DMAC_1_IRQn, 0); // Set the Nested Vector Interrupt Controller (NVIC) priority for DMAC1 to 0 (highest)
    NVIC_EnableIRQ(DMAC_1_IRQn);      // Connect DMAC1 to Nested Vector Interrupt Controller (NVIC)

    // Activate the suspend (SUSP) interrupt on DMAC channel 1
    DMAC->Channel[1].CHINTENSET.reg = DMAC_CHINTENSET_SUSP;

    // Configure ADC
    ADC1->INPUTCTRL.bit.MUXPOS = ADC_INPUTCTRL_MUXPOS_AIN12_Val; // Set the analog input to ADC0/AIN2 (PB08 - A4 on Metro M4)
    while (ADC1->SYNCBUSY.bit.INPUTCTRL)
        ;                              // Wait for synchronization
    ADC1->SAMPCTRL.bit.SAMPLEN = 0x00; // Set max Sampling Time Length to half divided ADC clock pulse (2.66us)
    while (ADC1->SYNCBUSY.bit.SAMPCTRL)
        ;                                         // Wait for synchronization
    ADC1->CTRLA.reg = ADC_CTRLA_PRESCALER_DIV128; // Divide Clock ADC GCLK by 128 (48MHz/128 = 375kHz)
    ADC1->CTRLB.reg = ADC_CTRLB_RESSEL_12BIT |    // Set ADC resolution to 12 bits
                        ADC_CTRLB_FREERUN;          // Set ADC to free run mode
    while (ADC1->SYNCBUSY.bit.CTRLB)
        ;                       // Wait for synchronization
    ADC1->CTRLA.bit.ENABLE = 1; // Enable the ADC
    while (ADC1->SYNCBUSY.bit.ENABLE)
        ;                       // Wait for synchronization
    ADC1->SWTRIG.bit.START = 1; // Initiate a software trigger to start an ADC conversion
    while (ADC1->SYNCBUSY.bit.SWTRIG)
        ; // Wait for synchronization

    // Enable DMA channel 1
    DMAC->Channel[1].CHCTRLA.bit.ENABLE = 1;

    // Configure Timer/Counter 5
    GCLK->PCHCTRL[TC5_GCLK_ID].reg = GCLK_PCHCTRL_CHEN |     // Enable peripheral channel for TC5
                                        GCLK_PCHCTRL_GEN_GCLK1; // Connect generic clock 0 at 48MHz

    TC5->COUNT16.WAVE.reg = TC_WAVE_WAVEGEN_MFRQ; // Set TC5 to Match Frequency (MFRQ) mode
    TC5->COUNT16.CC[0].reg = 3000 - 1;            // Set the trigger to 16 kHz: (4Mhz / 16000) - 1
    while (TC5->COUNT16.SYNCBUSY.bit.CC0)
        ; // Wait for synchronization

    // Start Timer/Counter 5
    TC5->COUNT16.CTRLA.bit.ENABLE = 1; // Enable the TC5 timer
    while (TC5->COUNT16.SYNCBUSY.bit.ENABLE)
        ; // Wait for synchronization
}

uint16_t _adc_buf_0[ADC_BUF_LEN];
uint16_t _adc_buf_1[ADC_BUF_LEN];

This code defines a configureDmaAdc method that configures the DMAC, connecting it to the ADC and setting it to populate two different alternating buffers, _adc_buf_0 and _adc_buf_0.

💁 One of the downsides of microcontroller development is the complexity of the code needed to interact with hardware, as your code runs at a very low level interacting with hardware directly. This code is more complex than what you would write for a single-board computer or desktop computer as there is no operating system to help. There are some libraries available that can simplify this, but there is still a lot of complexity.

Below this, add the following code:

// WAV files have a header. This struct defines that header
struct wavFileHeader
{
    char riff[4];         /* "RIFF"                                  */
    long flength;         /* file length in bytes                    */
    char wave[4];         /* "WAVE"                                  */
    char fmt[4];          /* "fmt "                                  */
    long chunk_size;      /* size of FMT chunk in bytes (usually 16) */
    short format_tag;     /* 1=PCM, 257=Mu-Law, 258=A-Law, 259=ADPCM */
    short num_chans;      /* 1=mono, 2=stereo                        */
    long srate;           /* Sampling rate in samples per second     */
    long bytes_per_sec;   /* bytes per second = srate*bytes_per_samp */
    short bytes_per_samp; /* 2=16-bit mono, 4=16-bit stereo          */
    short bits_per_samp;  /* Number of bits per sample               */
    char data[4];         /* "data"                                  */
    long dlength;         /* data length in bytes (filelength - 44)  */
};

void initBufferHeader()
{
    wavFileHeader wavh;

    strncpy(wavh.riff, "RIFF", 4);
    strncpy(wavh.wave, "WAVE", 4);
    strncpy(wavh.fmt, "fmt ", 4);
    strncpy(wavh.data, "data", 4);

    wavh.chunk_size = 16;
    wavh.format_tag = 1; // PCM
    wavh.num_chans = 1;  // mono
    wavh.srate = RATE;
    wavh.bytes_per_sec = (RATE * 1 * 16 * 1) / 8;
    wavh.bytes_per_samp = 2;
    wavh.bits_per_samp = 16;
    wavh.dlength = RATE * 2 * 1 * 16 / 2;
    wavh.flength = wavh.dlength + 44;

    _writer.writeSfudBuffer((byte *)&wavh, 44);
}

This code defines the WAV header as a struct that takes up 44 bytes of memory. It writes details to it about the audio file rate, size, and number of channels. This header is then written to the flash memory

Below this code, add the following to declare a method to be called when the audio buffers are ready to process:

void audioCallback(uint16_t *buf, uint32_t buf_len)
{
    static uint32_t idx = 44;

    if (_isRecording)
    {
        for (uint32_t i = 0; i < buf_len; i++)
        {
            int16_t audio_value = ((int16_t)buf[i] - 2048) * 16;

            _writer.writeSfudBuffer(audio_value & 0xFF);
            _writer.writeSfudBuffer((audio_value >> 8) & 0xFF);
        }

        idx += buf_len;

        if (idx >= BUFFER_SIZE)
        {
            _writer.flushSfudBuffer();
            idx = 44;
            _isRecording = false;
            _isRecordingReady = true;
        }
    }
}

The audio buffers are arrays of 16-bit integers containing the audio from the ADC. The ADC returns 12-bit unsigned values (0-1023), so these need to be converted to 16-bit signed values, and then converted into 2 bytes to be stored as raw binary data.

These bytes are written to the flash memory buffers. The write starts at index 44 - this is the offset from the 44 bytes written as the WAV file header. Once all the bytes needed for the required audio length have been captured, the remaining data is written to the flash memory.

In the public section of the Mic class, add the following code:

void dmaHandler()
{
    static uint8_t count = 0;

    if (DMAC->Channel[1].CHINTFLAG.bit.SUSP)
    {
        DMAC->Channel[1].CHCTRLB.reg = DMAC_CHCTRLB_CMD_RESUME;
        DMAC->Channel[1].CHINTFLAG.bit.SUSP = 1;

        if (count)
        {
            audioCallback(_adc_buf_0, ADC_BUF_LEN);
        }
        else
        {
            audioCallback(_adc_buf_1, ADC_BUF_LEN);
        }

        count = (count + 1) % 2;
    }
}

This code will be called by the DMAC to tell your code to process the buffers. It checks that there is data to process, and calls the audioCallback method with the relevant buffer.

Outside the class, after the Mic mic; declaration, add the following code:
```
void DMAC_1_Handler()
{
    mic.dmaHandler();
}
```
The DMAC_1_Handler will be called by the DMAC when there the buffers are ready to process. This function is found by name, so just needs to exist to be called.
Add the following two methods to the public section of the Mic class:
```
void init()
{
    analogReference(AR_INTERNAL2V23);

    _writer.init();

    initBufferHeader();
    configureDmaAdc();
}

void reset()
{
    _isRecordingReady = false;
    _isRecording = false;

    _writer.reset();

    initBufferHeader();
}
```
The init method contain code to initialize the Mic class. This method sets the correct voltage for the Mic pin, sets up the flash memory writer, writes the WAV file header, and configures the DMAC. The reset method resets the flash memory and re-writes the header after the audio has been captured and used.

Task - capture audio

In the main.cpp file, and an include directive for the mic.h header file:
```
#include "mic.h"
```
In the setup function, initialize the C button. Audio capture will start when this button is pressed, and continue for 4 seconds:
```
pinMode(WIO_KEY_C, INPUT_PULLUP);
```
Below this, initialize the microphone, then print to the console that audio is ready to be captured:
```
mic.init();

Serial.println("Ready.");
```
Above the loop function, define a function to process the captured audio. For now this does nothing, but later in this lesson it will send the speech to be converted to text:
```
void processAudio()
{

}
```
Add the following to the loop function:
```
void loop()
{
    if (digitalRead(WIO_KEY_C) == LOW && !mic.isRecording())
    {
        Serial.println("Starting recording...");
        mic.startRecording();
    }

    if (!mic.isRecording() && mic.isRecordingReady())
    {
        Serial.println("Finished recording");

        processAudio();

        mic.reset();
    }
}
```
This code checks the C button, and if this is pressed and recording hasn't started, then the _isRecording field of the Mic class is set to true. This will cause the audioCallback method of the Mic class to store audio until 4 seconds has been captured. Once 4 seconds of audio has been captured, the _isRecording field is set to false, and the _isRecordingReady field is set to true. This is then checked in the loop function, and when true the processAudio function is called, then the mic class is reset.

Build this code, upload it to your Wio Terminal and test it out through the serial monitor. Press the C button (the one on the left-hand side, closest to the power switch), and speak. 4 seconds of audio will be captured.

--- Available filters and text transformations: colorize, debug, default, direct, hexlify, log2file, nocontrol, printable, send_on_enter, time
--- More details at http://bit.ly/pio-monitor-filters
--- Miniterm on /dev/cu.usbmodem1101  9600,8,N,1 ---
--- Quit: Ctrl+C | Menu: Ctrl+T | Help: Ctrl+T followed by Ctrl+H ---
Ready.
Starting recording...
Finished recording

💁 You can find this code in the code-record/wio-terminal folder.

😀 Your audio recording program was a success!

Capture audio - Wio Terminal

Program the device to capture audio​

Task - configure flash memory​

Task - set up audio capture​

Task - capture audio​

Program the device to capture audio

Task - configure flash memory

Task - set up audio capture

Task - capture audio
