Count stock from your IoT device - Virtual IoT Hardware and Raspberry Pi

A combination of the predictions and their bounding boxes can be used to count stock in an image

Show bounding boxes

As a helpful debugging step you can not only print out the bounding boxes, but you can also draw them on the image that was written to disk when an image was captured.

Task - print the bounding boxes

  1. Ensure the stock-counter project is open in VS Code, and the virtual environment is activated if you are using a virtual IoT device.

  2. Change the print statement in the for loop to the following to print the bounding boxes to the console:

    print(f'{prediction.tag_name}:\t{prediction.probability * 100:.2f}%\t{prediction.bounding_box}')
  3. Run the app with the camera pointing at some stock on a shelf. The bounding boxes will be printed to the console, with left, top, width and height values from 0-1.

    pi@raspberrypi:~/stock-counter $ python3 app.py
    tomato paste: 33.42% {'additional_properties': {}, 'left': 0.3455171, 'top': 0.09916268, 'width': 0.14175442, 'height': 0.29405564}
    tomato paste: 34.41% {'additional_properties': {}, 'left': 0.48283678, 'top': 0.10242918, 'width': 0.11782813, 'height': 0.27467814}
    tomato paste: 31.25% {'additional_properties': {}, 'left': 0.4923783, 'top': 0.35007596, 'width': 0.13668466, 'height': 0.28304994}
    tomato paste: 31.05% {'additional_properties': {}, 'left': 0.36416405, 'top': 0.37494493, 'width': 0.14024884, 'height': 0.26880276}

Task - draw bounding boxes on the image

  1. The Pip package Pillow can be used to draw on images. Install this with the following command:

    pip3 install pillow

    If you are using a virtual IoT device, make sure to run this from inside the activated virtual environment.

  2. Add the following import statement to the top of the app.py file:

    from PIL import Image, ImageDraw, ImageColor

    This imports code needed to edit the image.

  3. Add the following code to the end of the app.py file:

    with Image.open('image.jpg') as im:
    draw = ImageDraw.Draw(im)

    for prediction in predictions:
    scale_left = prediction.bounding_box.left
    scale_top = prediction.bounding_box.top
    scale_right = prediction.bounding_box.left + prediction.bounding_box.width
    scale_bottom = prediction.bounding_box.top + prediction.bounding_box.height

    left = scale_left * im.width
    top = scale_top * im.height
    right = scale_right * im.width
    bottom = scale_bottom * im.height

    draw.rectangle([left, top, right, bottom], outline=ImageColor.getrgb('red'), width=2)

    im.save('image.jpg')

    This code opens the image that was saved earlier for editing. It then loops through the predictions getting the bounding boxes, and calculates the bottom right coordinate using the bounding box values from 0-1. These are then converted to image coordinates by multiplying by the relevant dimension of the image. For example, if the left value was 0.5 on an image that was 600 pixels wide, this would convert it to 300 (0.5 x 600 = 300).

    Each bounding box is drawn on the image using a red line. Finally the edited image is saved, overwriting the original image.

  4. Run the app with the camera pointing at some stock on a shelf. You will see the image.jpg file in the VS Code explorer, and you will be able to select it to see the bounding boxes.

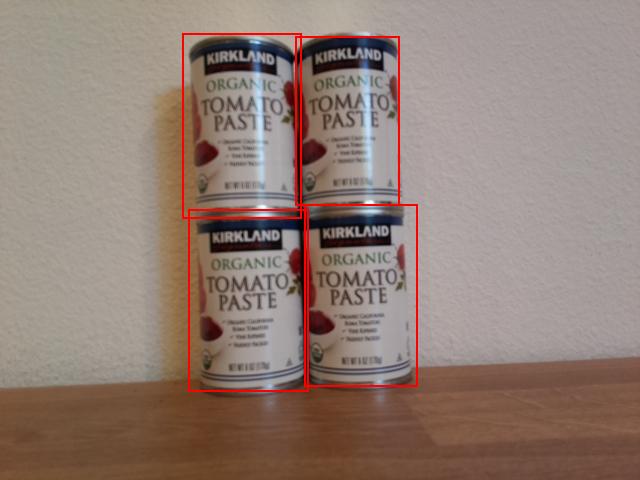

    4 cans of tomato paste with bounding boxes around each can

Count stock

In the image shown above, the bounding boxes have a small overlap. If this overlap was much larger, then the bounding boxes may indicate the same object. To count the objects correctly, you need to ignore boxes with a significant overlap.

Task - count stock ignoring overlap

  1. The Pip package Shapely can be used to calculate the intersection. If you are using a Raspberry Pi, you will need to install a library dependency first:

    sudo apt install libgeos-dev
  2. Install the Shapely Pip package:

    pip3 install shapely

    If you are using a virtual IoT device, make sure to run this from inside the activated virtual environment.

  3. Add the following import statement to the top of the app.py file:

    from shapely.geometry import Polygon

    This imports code needed to create polygons to calculate overlap.

  4. Above the code that draws the bounding boxes, add the following code:

    overlap_threshold = 0.20

    This defines the percentage overlap allowed before the bounding boxes are considered to be the same object. 0.20 defines a 20% overlap.

  5. To calculate overlap using Shapely, the bounding boxes need to be converted into Shapely polygons. Add the following function to do this:

    def create_polygon(prediction):
    scale_left = prediction.bounding_box.left
    scale_top = prediction.bounding_box.top
    scale_right = prediction.bounding_box.left + prediction.bounding_box.width
    scale_bottom = prediction.bounding_box.top + prediction.bounding_box.height

    return Polygon([(scale_left, scale_top), (scale_right, scale_top), (scale_right, scale_bottom), (scale_left, scale_bottom)])

    This creates a polygon using the bounding box of a prediction.

  6. The logic for removing overlapping objects involves comparing all bounding boxes and if any pairs of predictions have bounding boxes that overlap more than the threshold, delete one of the predictions. To compare all the predictions, you compare prediction 1 with 2, 3, 4, etc., then 2 with 3, 4, etc. The following code does this:

    to_delete = []

    for i in range(0, len(predictions)):
    polygon_1 = create_polygon(predictions[i])

    for j in range(i+1, len(predictions)):
    polygon_2 = create_polygon(predictions[j])
    overlap = polygon_1.intersection(polygon_2).area

    smallest_area = min(polygon_1.area, polygon_2.area)

    if overlap > (overlap_threshold * smallest_area):
    to_delete.append(predictions[i])
    break

    for d in to_delete:
    predictions.remove(d)

    print(f'Counted {len(predictions)} stock items')

    The overlap is calculated using the Shapely Polygon.intersection method that returns a polygon that has the overlap. The area is then calculated from this polygon. This overlap threshold is not an absolute value, but needs to be a percentage of the bounding box, so the smallest bounding box is found, and the overlap threshold is used to calculate what area the overlap can be to not exceed the percentage overlap threshold of the smallest bounding box. If the overlap exceeds this, the prediction is marked for deletion.

    Once a prediction has been marked for deletion it doesn't need to be checked again, so the inner loop breaks out to check the next prediction. You can't delete items from a list whilst iterating through it, so the bounding boxes that overlap more than the threshold are added to the to_delete list, then deleted at the end.

    Finally the stock count is printed to the console. This could then be sent to an IoT service to alert if the stock levels are low. All of this code is before the bounding boxes are drawn, so you will see the stock predictions without overlaps on the generated images.

    💁 This is very simplistic way to remove overlaps, just removing the first one in an overlapping pair. For production code, you would want to put more logic in here, such as considering the overlaps between multiple objects, or if one bounding box is contained by another.

  7. Run the app with the camera pointing at some stock on a shelf. The output will indicate the number of bounding boxes without overlaps that exceed the threshold. Try adjusting the overlap_threshold value to see predictions being ignored.

💁 You can find this code in the code-count/pi or code-count/virtual-iot-device folder.

😀 Your stock counter program was a success!
